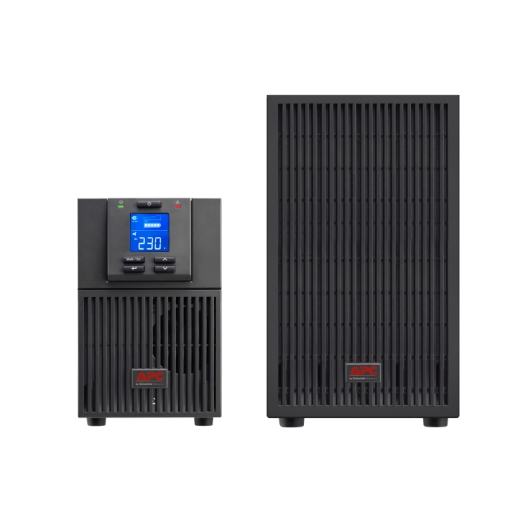

APC Easy UPS On-Line SRV 2000VA 230V with Extended Runtime Battery Pack SRV2KIL

300,000.00

Category: Tag:

Output

Max Configurable Power (Watts)

1.6kWatts / 2.0kVA
Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load

88.0 %
Output Voltage Distortion

3 %
Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages

220 V, 240 V
Load Crest Factor

3 : 1
Topology

Double conversion online
Waveform type

Sine wave
Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto sensing
Input voltage range for main operations

110 – 285 Half load, 160 – 280 Full loadV
Number of Power Cords

1
Efficiency at Full Load

88.0 %
Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery
Typical recharge time

5.5hour(s)
Nominal Battery Voltage

72 V
Expected Battery Life (years)

3 – 5
Battery Charge Power (Watts)

350 Watts

Communications & Management

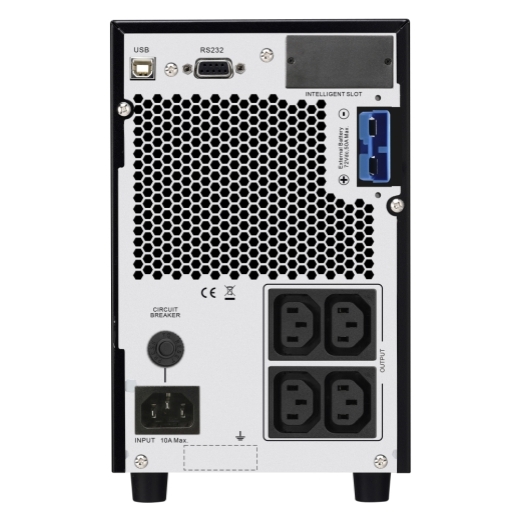

Interface Port(s)

DB-9 RS-232, USB
Control panel

Multifunction LCD status and control console
Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

336MM, 33.6CM
Maximum Width

335MM, 33.5CM
Maximum Depth

425MM, 42.5CM
Net Weight

45.4KG
Shipping weight

49.3KG
Shipping Height

465MM, 46.5CM
Shipping Width

560MM, 56.0CM
Shipping Depth

565MM, 56.5CM
Color

Black

Environmental

Operating Temperature

0 – 40 °C
Operating Relative Humidity

0 – 95 (Non-condensing) %
Operating Elevation

0 – 3000meters
Storage Temperature

-20 – 50 °C
Storage Relative Humidity

0 – 95 (Non-condensing) %
Storage Elevation

0 – 15000meters
Audible noise at 1 meter from surface of unit

50.0dBA
Online thermal dissipation

745.0BTU/hr
Protection Class

IP20

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI
Standard warranty

2 years repair or replace
