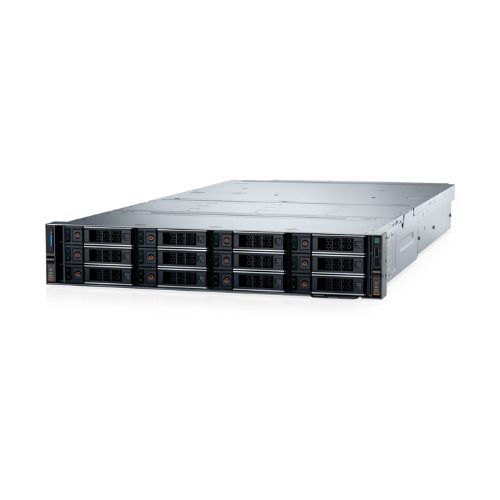

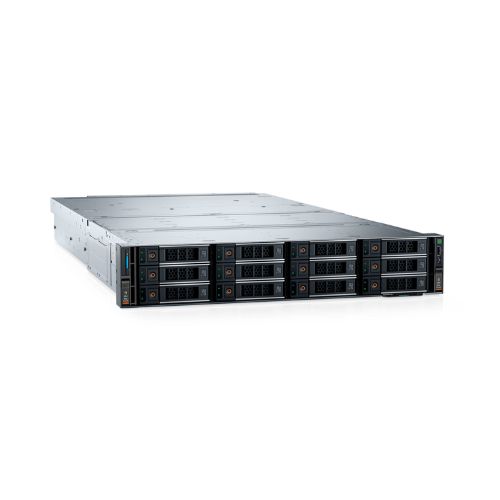

PowerEdge R760xd2 Rack Server

Description

Tech Specs & Customization
Processor
Up to 2 x 4th Generation Intel Xeon Scalable processors or
Up to 2 x 5th Generation Intel Xeon Scalable processors

Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

Chipset
Intel® C741 Chipset with optional Intel® QuickAssist Technology

Accelerators
Up to 2 x 75 W SW , 1 x 75 W SW + 1 x 150 W SW or 1 x180 W DW

Memory
DIMM Speed
Up to 5600 MT/s
Note: The maximum memory speed the system will support is 4800 MT/s due to the limitation of the processor.
Note: 5600 MT/s RDIMMs are applicable for 5th Gen Intel Xeon Scalable Processors.

Memory Type
RDIMM

Memory Module Slots
16 DDR5 DIMM slots

Maximum RAM
RDIMM 1.5 TB

Storage
Front Bay
Up to 12 x 3.5-inch SAS/SATA max 264 TB

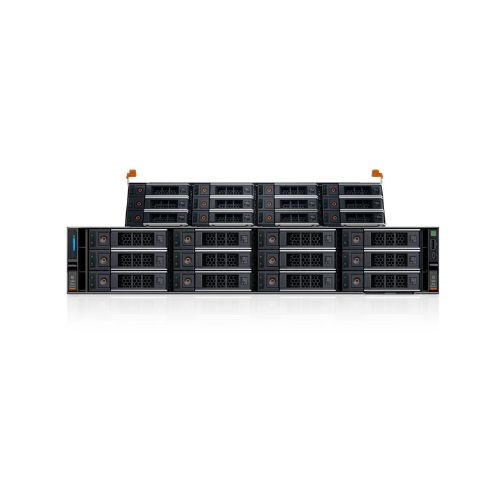

Mid Bay
Up to 12 x 3.5-inch SAS/SATA max 264 TB

Rear Bay
Up to 4 x 3.5-inch SAS/SATA max 88 TB
Up to 4 x 2.5-inch NVMe with 3.5 inch carrier max 30.72 TB
Up to 2 x 2.5-inch NVMe max 15.36 TB
4 x E3.S NVMe SSD max 61.44 TB

Storage Controllers
Internal Controllers
PERC H755, PERC H965i, PERC H355, HBA355i, HBA465i

External Controllers
HBA355e, HBA465e, PERC H965e

Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
USB

Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

Consoles Open

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

Mobility
OpenManage Mobile

Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI

OpenManage Integrations
BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
RedHat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Ports
Network Options
2 x 1GbE LOM
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0

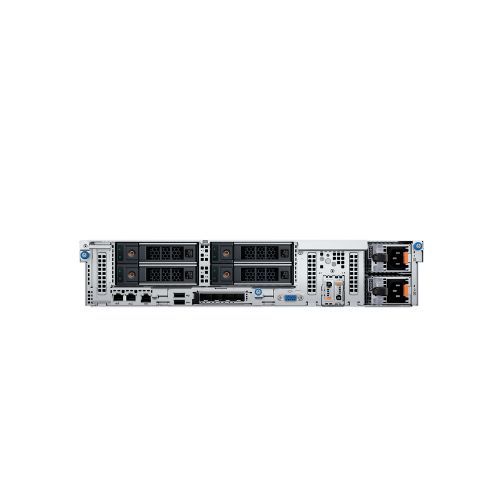

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x VGA

Internal Ports
1 x USB 3.0 (optional)

Slots
Slot 1: 1 x16 Gen 4 Low profile, Half length
Slot 2: 1 x8 (x16 connector) Gen 4 Low profile, Half length or 1 x16
Gen 4 Full height, Full length or 1 x16 Gen 4 Full height, Half length
Slot 3: 1 x16 Gen 4 Low profile, Half length or 1 x16 Gen 4 Full height, Full
length or 1 x16 Gen 4 Full height, Half length
Slot 4: 1 x16 Gen 4 Low profile, Half length
Slot 5: 1 x16 Gen 4 Low profile, Half length
NOTE: Slot 5 is dedicated for internal PERC card.

Form Factor
2U rack server

Dimensions & Weight
Height
3.41 in. (86.8 mm)

Width
18.96 in. (481.6 mm)

Depth
With bezel – NA
32.95 in. (837 mm) without bezel

Weight
102.07 lb (46.3 kg) maximum weight

Rack Support
Stab-in sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
