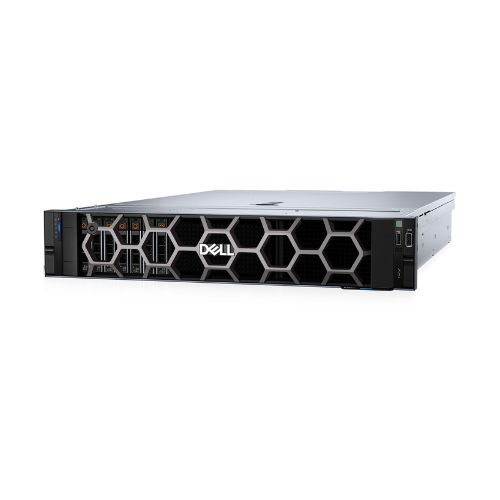

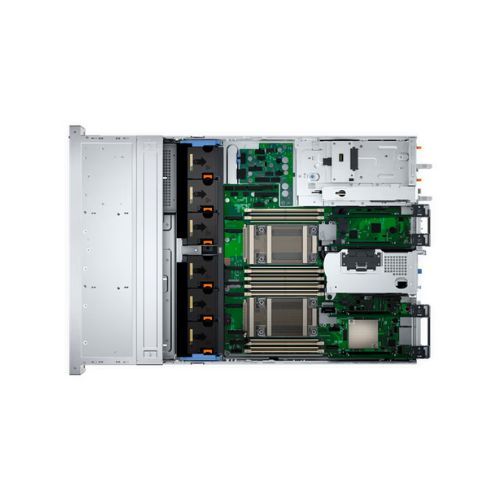

PowerEdge R760xs Rack Server

Description

Tech Specs & Customization
Processor
Up to 2 x 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per processor

Operating System
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® vSAN/ESXi®
Canonical® Ubuntu® Server LTS

Chipset
Intel® C741 Chipset

Accelerators
2 x 75 W SW, LP

Memory
DIMM Speed
Up to 5200 MT/s

Memory Type
RDIMM

Memory Module Slots
16 DDR5 DIMM slots

Maximum RAM
1.5 TB

Storage
Front Bay
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 288 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB

Rear Bay
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

Internal Controllers
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i

External Controllers
HBA355e

Software RAID
S160

Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs
USB

Storage Controllers
Internal Controllers
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

External Controllers
HBA355e

Software RAID
S160

Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs
USB

Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

Mobility
OpenManage Mobile

Tools
Dell Repository Manager Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI

OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager

Power Supplies
Power Supplies
1800 W Titanium 200—240 VAC or 240 VDC, hot swap redundant
1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 VDC, hot swap redundant
1400 W Titanium 277 VAC or HVDC (HVDC stands for High-Voltage DC, with 336V DC), hot swap redundant
1100 W Titanium 100—240 VAC or 240 VDC, hot swap redundant
1100 W -(48V — 60V) DC, hot swap redundant
800 W Platinum 100—240 VAC or 240 VDC, hot swap redundant
700 W Titanium 200—240 VAC or 240 VDC, hot swap redundant
600 W Platinum 100—240 VAC or 240 VDC, hot swap redundant

Fans
Standard (STD) fans, High performance SLVR fans or High performance GOLD fans
Up to 6 hot swappable fans

Ports
Network Options
2 x 1GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card to be installed in the system.

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

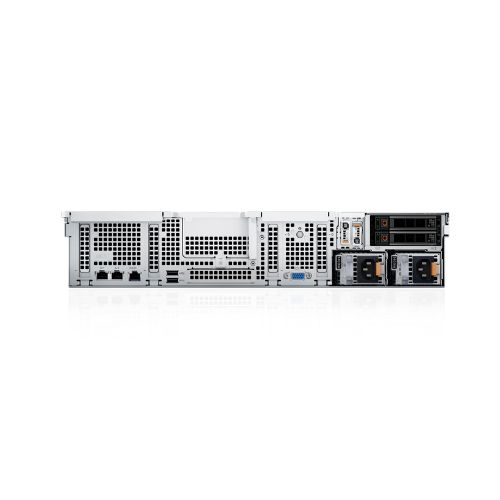

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA

Internal Ports
1 x USB 3.0 (optional)

Slots
PCIe
1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4)
2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5)

Video
1 x VGA

Bezel
Optional LCD bezel or security bezel

Form Factor
2U rack server

Dimensions & Weight
Height
86.80 mm (3.41 in.)

Width
482 mm (18.97 in)

Depth
707.78 mm (27.85 in) – without bezel
721.62 mm (28.4 in) – with bezel

Weight
Max 28.6 kg (63.0 lbs.)

Rack Support
ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks
Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks
ReadyRails static rails for 4-post and 2-post racks
