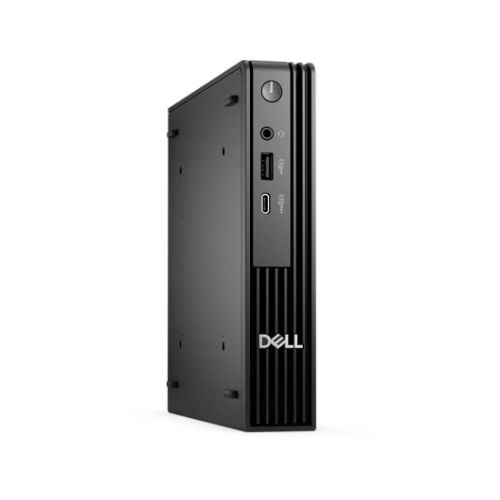

Dell Pro Micro Desktop

Description

Tech Specs & Customization
Processor
Intel® Core™ Ultra 7 265T vPro® (30 MB cache, 20 cores, 20 threads, 1.5 GHz to 5.3 GHz, 35 W)
Intel® Core™ Ultra 5 245T vPro® (24 MB cache, 14 cores, 14 threads, 2.2 GHz to 5.1 GHz, 35 W)
Intel® Core™ Ultra 5 235T vPro® (24 MB cache, 14 cores, 14 threads, 2.2 GHz to 5.0 GHz, 35 W)
Intel® Core™ i7 14700T vPro® (33 MB cache, 20 cores, 28 threads, 1.3 GHz to 5.0 GHz Turbo, 35 W)
Intel® Core™ i5 14600T vPro® (24 MB cache, 14 cores, 20 threads, 1.8 GHz to 5.1 GHz Turbo, 35 W)
Intel® Core™ i5 14500T vPro® (24 MB cache, 14 cores, 20 threads, 1.7 GHz to 4.8 GHz Turbo, 35 W)
Intel® Core™ i3 14100T (12 MB cache, 4 cores, 8 threads, 2.7 GHz to 4.4 GHz Turbo, 35 W)
Intel® Core™ 300T (6 MB cache, 2 cores, 4 threads, up to 3.4 GHz, 35 W)

Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home
Windows 11 Enterprise
Windows 11 Pro
Windows 11 Pro National Education
Ubuntu® Linux® 24.04 LTS, 64-bit

Video Card
Integrated
Intel® Graphics for Intel® Core™ Ultra 7 and Ultra 5 processors
Intel® UHD Graphics 770 for Intel® Core™ i7 and i5 processors
Intel® UHD Graphics 730 for Intel® Core™ i3 processor
Intel® UHD Graphics 710 for Intel® Core™ 300T processor

Memory*
For computers shipped with Intel® Core™ 300T, i3 14100T and i5 14500T processors:
8 GB: 1 x 8 GB, DDR5, 4800 MT/s, single-channel
16 GB: 1 x 16 GB, DDR5, 4800 MT/s, single-channel
16 GB: 2 x 8 GB, DDR5, 4800 MT/s, dual-channel
32 GB: 1 x 32 GB, DDR5, 4800 MT/s, single-channel
32 GB: 2 x 16 GB, DDR5, 4800 MT/s, dual-channel
64 GB: 2 x 32 GB, DDR5, 4800 MT/s, dual-channel

For computers shipped with Intel® Core™ i5 14600T and i7 processors:
8 GB: 1 x 8 GB, DDR5, 5600 MT/s, single-channel
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, single-channel
16 GB: 2 x 8 GB, DDR5, 5600 MT/s, dual-channel
32 GB: 1 x 32 GB, DDR5, 5600 MT/s, single-channel
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, dual-channel
64 GB: 2 x 32 GB, DDR5, 5600 MT/s, dual-channel

For computers shipped with Intel® Core™ Ultra 5 and Ultra 7 processors:
8 GB: 1 x 8 GB, DDR5, 6400 MT/s, single-channel
16 GB: 1 x 16 GB, DDR5, 6400 MT/s, single-channel
16 GB: 2 x 8 GB, DDR5, 6400 MT/s, dual-channel
32 GB: 1 x 32 GB, DDR5, 6400 MT/s, single-channel
32 GB: 2 x 16 GB, DDR5, 6400 MT/s, dual-channel
8 GB: 1 x 8 GB, DDR5, 5600 MT/s, single-channel
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, single-channel
16 GB: 2 x 8 GB, DDR5, 5600 MT/s, dual-channel
32 GB: 1 x 32 GB, DDR5, 5600 MT/s, single-channel
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, dual-channel
64 GB: 2 x 32 GB, DDR5, 5600 MT/s, dual-channel

Storage
512 GB, M.2 2230, QLC PCIe Gen4 NVMe, SSD, Class 25
1 TB, M.2 2230, QLC PCIe Gen4 NVMe, SSD, Class 25
256 GB, M.2 2230, TLC PCIe Gen4 NVMe, SSD, Class 35
512 GB, M.2 2230, TLC PCIe Gen4 NVMe, SSD, Class 35
1 TB, M.2 2230, TLC PCIe Gen4 NVMe, SSD, Class 35
512 GB, M.2 2280, TLC PCIe Gen4 NVMe, SSD, Self-Encrypting Opal 2.0, Class 40
1 TB, M.2 2280, TLC PCIe Gen4 NVMe, SSD, Self-Encrypting Opal 2.0, Class 40

Microsoft Office
Adobe Acrobat
Adobe AI Assistant
Adobe Express Premium
Adobe Photoshop Elements 2023 & Premier Elements 2023 Bundle
CyberLink Media Suite Essentials
CyberLink® Director Suite
CyberLink® PhotoDirector®
CyberLink® PowerDirector®
Dell Command | Configure (DCC)
Dell Command | Endpoint Configure for Microsoft Intune
Dell Command | Integration Suite (DCIS)
Dell Command | Intel vPro (DCIV)
Dell Command | Monitor (DCM)
Dell Command | Powershell Provider (DCPP)
Dell Command | Update (DCU)
Dell Optimizer (UUE)
Foxit PDF Editor
Microsoft Office
Microsoft 365
Support Assist

Security Software
BIOS Guard (Core CPUs only)
Boot Guard
Data Guard (vPro only)
Dell Data Protection – Endpoint Security Suite (DDP|ESS)
Dell Data Protection – Endpoint Security Suite Enterprise (DDP|ESS-E)
Dell Data Protection – SW Encryption (DDPE)
Dell SafeGuard and Response CrowdStrike, VMware Carbon Black, Secureworks
Dell Trusted Device
Intel Device Protection with Platform Trust
Intel Guard Technologies and Secure Key
Intel Runtime BIOS Resilience (Copper Point) with attestation using Nifty Rock + Intel TXT
McAfee Business Protection
Memory Encryption
Microsoft 10 Device Guard & Credential Guard (Enterprise SKU)
Microsoft Windows Bitlocker
OS Guard (Core CPUs only)
Secure Key (i5 or greater only)
Software Guard (SGX)
Support of Absolute Persistent Module BIOS agent v2

Support Services
1Y Basic Warranty with Hardware Onsite Service after Remote Diagnosis
2Y Basic Warranty Extension
3Y Basic Warranty Extension
4Y Basic Warranty Extension
5Y Basic Warranty Extension

1Y ProSupport with Next Business Day Onsite Service
2Y ProSupport with Next Business Day Onsite Service
3Y ProSupport with Next Business Day Onsite Service
4Y ProSupport with Next Business Day Onsite Service
5Y ProSupport with Next Business Day Onsite Service

1Y ProSupport Plus for Client with Next Business Day Onsite service
2Y ProSupport Plus for Client with Next Business Day Onsite service
3Y ProSupport Plus for Client with Next Business Day Onsite service
4Y ProSupport Plus for Client with Next Business Day Onsite service
5Y ProSupport Plus for Client with Next Business Day Onsite service

Accidental Damage Protection
1-year Accidental Damage Service
2-year Accidental Damage Service
3-year Accidental Damage Service
4-year Accidental Damage Service
5-year Accidental Damage Service

Keyboard
NA

Ports

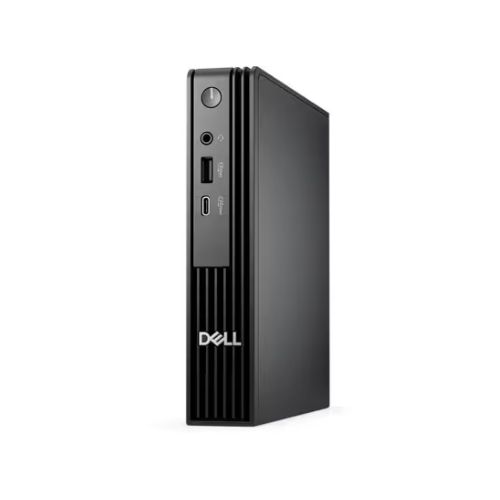

Front:
1 USB 3.2 Gen 2 (10 Gbps) Type-C® port
1 USB 3.2 Gen 1 (5 Gbps) port
1 headset (headphone and microphone combo) port

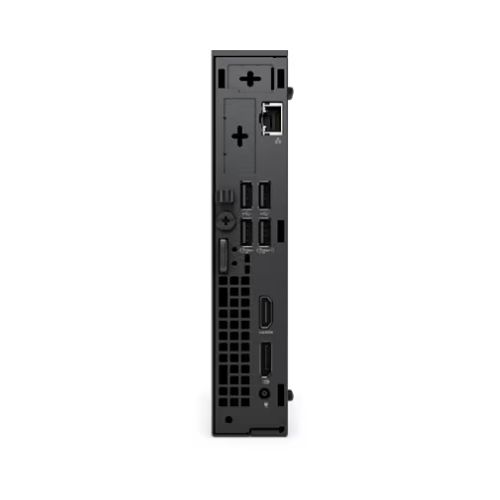

Rear:
1 USB 3.2 Gen 1 (5 Gbps) port with SmartPower On
1 USB 3.2 Gen 1 (5 Gbps) port
2 USB 2.0 (480 Mbps) ports
1 DisplayPort™ 1.4a (HBR3 support) port for computers shipped with Intel® Core™ Ultra processors
1 DisplayPort™ 1.4a (HBR2 support) port for computers shipped with Intel® Core™ 300T, i3, i5 and i7 processors
1 HDMI 2.1 port
1 RJ45 (10/100/1000 Mbps) Ethernet port
1 power-adapter port
1 optional module port (HDMI 2.1 FRL/DisplayPort™ 2.1 (UHBR20)/VGA/USB Type-C® with DisplayPort™ Alt Mode/2 USB-A 3.2 Gen 2/PS2 and Serial/Serial Module/5G Optical Fiber) for computers shipped with Intel® Core™ Ultra processors
1 optional module port (HDMI 2.1 TMDS/DisplayPort™ 1.4a (HBR3)/VGA/USB Type-C® with DisplayPort™ Alt Mode/2 USB-A 3.2 Gen 2/PS2 and Serial/Serial Module/5G Optical Fiber) for computers shipped with Intel® Core™ 300T, i3, i5 and i7 processors

Optical Drive
NA

Slots
1 M.2 2230 slot for Wi-Fi and Bluetooth combo card
2 M.2 2230/2280 slots for solid-state drive

Dimensions & Weight
Height: 182.00 mm (7.17″)
Width: 36.00 mm (1.41″)
Depth: 178.00 mm (7.01″)
Weight (minimum): 1.16 Kg (2.56 lb)
Weight (maximum): 1.40 Kg (3.09 lb)

Wireless*
Intel® Wi-Fi 7 BE200, 2×2, 802.11be, MU-MIMO, Bluetooth® 5.4 wireless card
Intel® Wi-Fi 6E AX211, 2×2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card
MediaTek Wi-Fi 6 MT7920, 2×2, 802.11ax, MU-MIMO, Bluetooth® 5.4 wireless card

Power
65 W AC adapter, 4.5mm barrel
90 W AC adapter, 4.5mm barrel
