Processor
Intel® Core™ Ultra 5 235 (24 MB cache, 14 cores, 14 threads, 3.4 GHz to 5.0 GHz, 65W )
Intel® Core™ Ultra 5 245 (24 MB cache, 14 cores, 14 threads, 3.5 GHz to 5.1 GHz, 65W)
Intel® Core™ Ultra 5 245K (24 MB cache, 14 cores, 14 threads, 4.2 GHz to 5.2 GHz, 125W)
Intel® Core™ Ultra 7 265 (30 MB cache, 20 cores, 20 threads, 2.4 GHz to 5.3 GHz, 65W)
Intel® Core™ Ultra 7 265K (30 MB cache, 20 cores, 20 threads, 3.9 GHz to 5.5 GHz, 125W)
Intel® Core™ Ultra 9 285 (36 MB cache, 24 cores, 24 threads, 2.5 GHz to 5.6 GHz, 65W)
Intel® Core™ Ultra 9 285K (36 MB cache, 24 cores, 24 threads, 3.7 GHz to 5.7 GHz, 125W)
Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home
Windows 11 Home High End
Windows 11 Pro
Windows 11 Pro National Academic
Windows 11 Pro for Workstations
Windows 11 IoT Enterprise 2024 LTSC
Ubuntu® Linux® 24.04 LTS
Red Hat Linux® 8.6 Enterprise
Video Card
NVIDIA:
NVIDIA® RTX™ A400, 4 GB GDDR6
NVIDIA® RTX™ A1000, 8 GB GDDR6
NVIDIA® RTX™ 2000 Ada, 16 GB GDDR6
NVIDIA® RTX™ 4000 Ada, 20 GB GDDR6
NVIDIA® RTX™ 4500 Ada, 24 GB GDDR6
NVIDIA® RTX™ 5000 Ada, 32 GB GDDR6
NVIDIA® RTX™ 6000 Ada, 48 GB GDDR6
AMD:
AMD Radeon™ Pro W7500, 8 GB GDDR6
AMD Radeon™ Pro W7600, 8 GB GDDR6
Memory*
8 GB: 1 x 8 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, single-channel
16 GB: 2 x 8 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, single-channel
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel
32 GB: 4 x 8 GB, DDR5, 4800 MT/s, UDIMM, Non-ECC, dual-channel
64 GB: 2 x 32 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel
64 GB: 4 x 16 GB, DDR5, 4800 MT/s, UDIMM, Non-ECC, dual-channel
128 GB: 4 x 32 GB, DDR5, 4400 MT/s, UDIMM, Non-ECC, dual-channel
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, UDIMM, ECC, single-channel
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, UDIMM, ECC, dual-channel
64 GB: 2 x 32 GB, DDR5, 5600 MT/s, UDIMM, ECC, dual-channel
64 GB: 4 x 16 GB, DDR5, 4800 MT/s, UDIMM, ECC, dual-channel
128 GB: 4 x 32 GB, DDR5, 4400 MT/s, UDIMM, ECC, dual-channel
Storage
Solid-state drives
256 GB, M.2 2230, PCIe NVMe Gen4, SSD, Class 35
512 GB, M.2 2230, PCIe NVMe Gen4, SSD, Class 35
512 GB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40
1 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40
2 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40
4 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40
1 TB, M.2 2280, PCIe NVMe Gen5 x4, SSD, Self-Encrypting, Opal 2.0, FIPS
2 TB, M.2 2280, PCIe NVMe Gen5 x4, SSD, Self-Encrypting, Opal 2.0, FIPS
Hard drives
4 TB, 3.5-inch, 5400 RPM, SATA, HDD
1 TB, 3.5-inch,7200 RPM, SATA, HDD
2 TB, 3.5-inch, 7200 RPM, SATA, HDD
4 TB, 3.5-inch, 7200 RPM, SAS, Enterprise HDD
8 TB, 3.5-inch, 7200 RPM, SAS, Enterprise HDD
Microsoft Office
Microsoft Office 30-day Trial
Microsoft Office Home and Business 2021
Microsoft Office Professional 2021
Dell Optimizer for Precision
Premier Color
Dell Support Assist (Exaclibur)
DDRE (Dell Developed Recovery Environment )
Intel WiFi Direct
Dell Support Center
Teradici Soft Host (Cloud) and Client Validation (CAS+)
Security Software
McAfee® Small Business Security 30-day Trial
McAfee® Small Business Security 12-month Subscription
McAfee® Small Business Security 36-month Subscription
Security software per software functional plan/cycle list
Dell Data Protection | Personal Edition (DDP | E PE) or Dell Encryption Personal (Future Name)
Dell Data Protection | Enterprise Edition (DDP | E EE) or Dell Encryption Enterprise (Future Name)
Dell Data Protection | External Media Edition (DDP | E EME) or Dell Encryption External Media (Future Name)
Data Leakage Protection (DLP) or Dell Data Guardian (new name)
Dell Data Protection | Bitlocker Manager (DDP | BLM)
VMWare Airwatch
Dell Data Protection | Endpoint Security Suite or Dell Endpoint Security Suite Pro
Dell Data Protection | Endpoint Security Suite Enterprise or Dell Endpoint Security Suite Enterprise
Mozy (Cloud Backup)
Dell Threat Defense
RSA SecureID
RSA NetWitness Endpoint
Absolute Data and Device Security
D-Pedigree (Secure Supply Chain Functionality)
Microsoft Windows Bitlocker Manager
Support for Encryption SED HDD’s (Opal FIPS and non FIPS, SATA, PCIe)
Support eDRIVE Storage including RAID
Support UEFI-Preboot Authentication (PBA) solution for Windows 10
Local HDD data wipe via BIOS (“Secure Erase”)
BIOS Administrative Password
BIOS Password
BIOS HDD password option (default off)
Windows 10 Device Guard and Credential Guard
BIOS Data Port On/Off – Data Port disablement
Intel Secure Boot (TXT + TPM) – Launch control policy
Intel’s Identity Protection (IPT)
Intel Guard Technologies & Secure Key
Secure update of pre-boot password(s) via remote BIOS update
Support Services
1Y Basic Hardware Warranty Service with Onsite Service after Remote Diagnosis
2Y Basic Warranty Extension
3Y Basic Warranty Extension
4Y Basic Warranty Extension
5Y Basic Warranty Extension
1Y ProSupport with Next Business Day Onsite service
2Y ProSupport with Next Business Day Onsite service
3Y ProSupport with Next Business Day Onsite service
4Y ProSupport with Next Business Day Onsite service
5Y ProSupport with Next Business Day Onsite service
1Y ProSupport Plus for Client with Next Business Day Onsite service
2Y ProSupport Plus for Client with Next Business Day Onsite service
3Y ProSupport Plus for Client with Next Business Day Onsite service
4Y ProSupport Plus for Client with Next Business Day Onsite service
5Y ProSupport Plus for Client with Next Business Day Onsite service
Accidental Damage Protection
1-year Accidental Damage Service
2-year Accidental Damage Service
3-year Accidental Damage Service
4-year Accidental Damage Service
5-year Accidental Damage Service
Ports
Front:
1 USB 3.2 Gen 1 (5Gbps) port
1 USB 3.2 Gen 1 (5Gbps) port with PowerShare
1 USB 3.2 Gen 2 (10Gbps) Type-C port
1 USB 3.2 Gen 2×2 (20Gbps) Type-C port with PowerShare
1 Global headset jack
1 SD 7.0 Express-card slot (Optional)

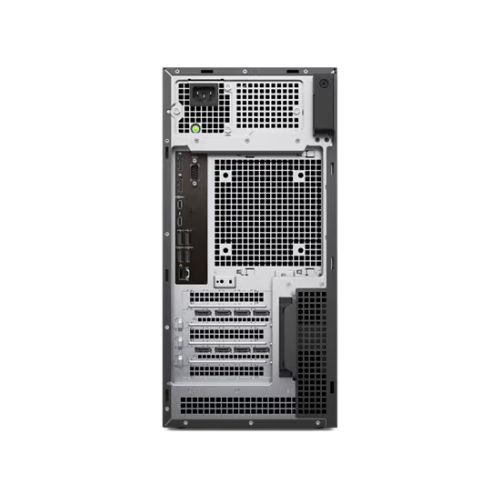

Rear:
2 USB 2.0 (480Mbps) ports with SmartPower
2 USB 3.2 Gen 2 (10Gbps) ports
1 USB 3.2 Gen 2×2 (20Gbps) Type-C port
1 RJ45 (1GbE ) Ethernet port
2 DisplayPort 1.4a HBR3 ports
1 Optional port (TBT4 (40Gbps) + USB-C (10Gbps) data , DP alt-mode Type-C (10Gbps), HDMI 2.1, DP 2.1, 5Gbe LAN, 2x USB-A 3.2 (10Gbps), VGA, 5GbE Optical)
Optical Drive
8x DVD-ROM 9.5mm optical drive
8x DVD+/-RW 9.5mm optical drive
Integrated Smart Card Reader with Contact and Contactless Support (CAC/PIV)
Slots
4 SATA 3.5-inch HDD/ODD
2 M.2 2230/2280 PCIe Gen4 slots
1 M.2 2230/2280 PCIe Gen5 slot
1 PEG full-height Gen5 PCIe x16 slot
1 full-height, half-length Gen3 x4 PCIe closed-end slot
1 full-height, full-length Gen4 x4 PCIe open-end slot
1 full-height, full-length Gen3 x4 PCIe open-end slot
Dimensions & Weight
Height: 387.00 mm (15.24 in.)
Width: 187.70 mm (7.40 in.)
Depth: 438.00 mm (17.24 in.)
Weight:
Maximum: 23 kg (50.70 lb)
Minimum: 8.17 kg (18 lb)
Wireless*
Intel® Wi-Fi 7 BE200, 2×2, 802.11be, MIMO, Bluetooth 5.4 wireless card
Qualcomm® Wi-Fi 7 DBS WCN7851, 2×2, 802.11be, MIMO, Bluetooth 5.4 wireless card
Power
Power supplies
360W internal power supply unit (80PLUS Platinum Certified)
500W internal power supply unit (80PLUS Platinum Certified)
1500W internal power supply unit (80PLUS Platinum Certified)
