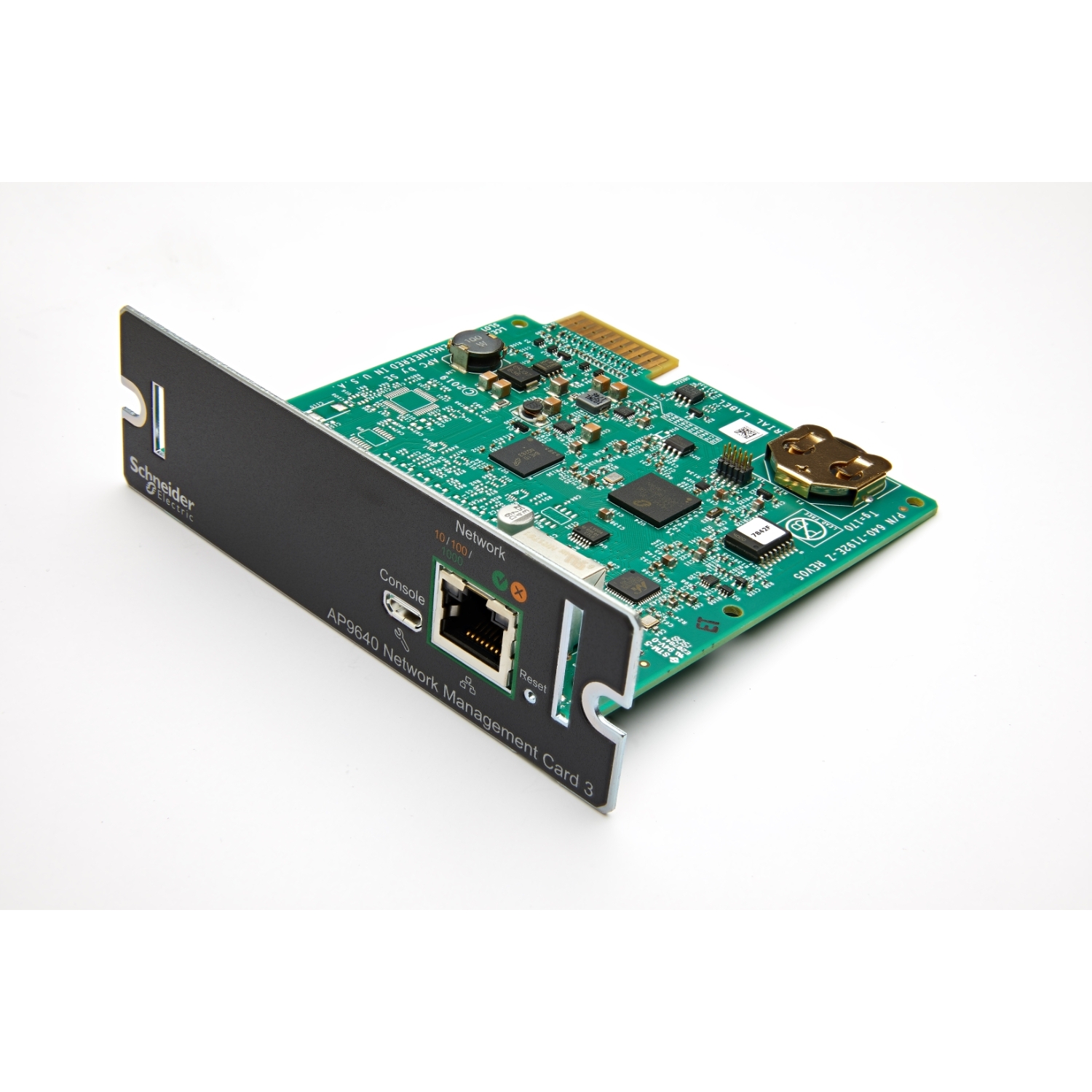

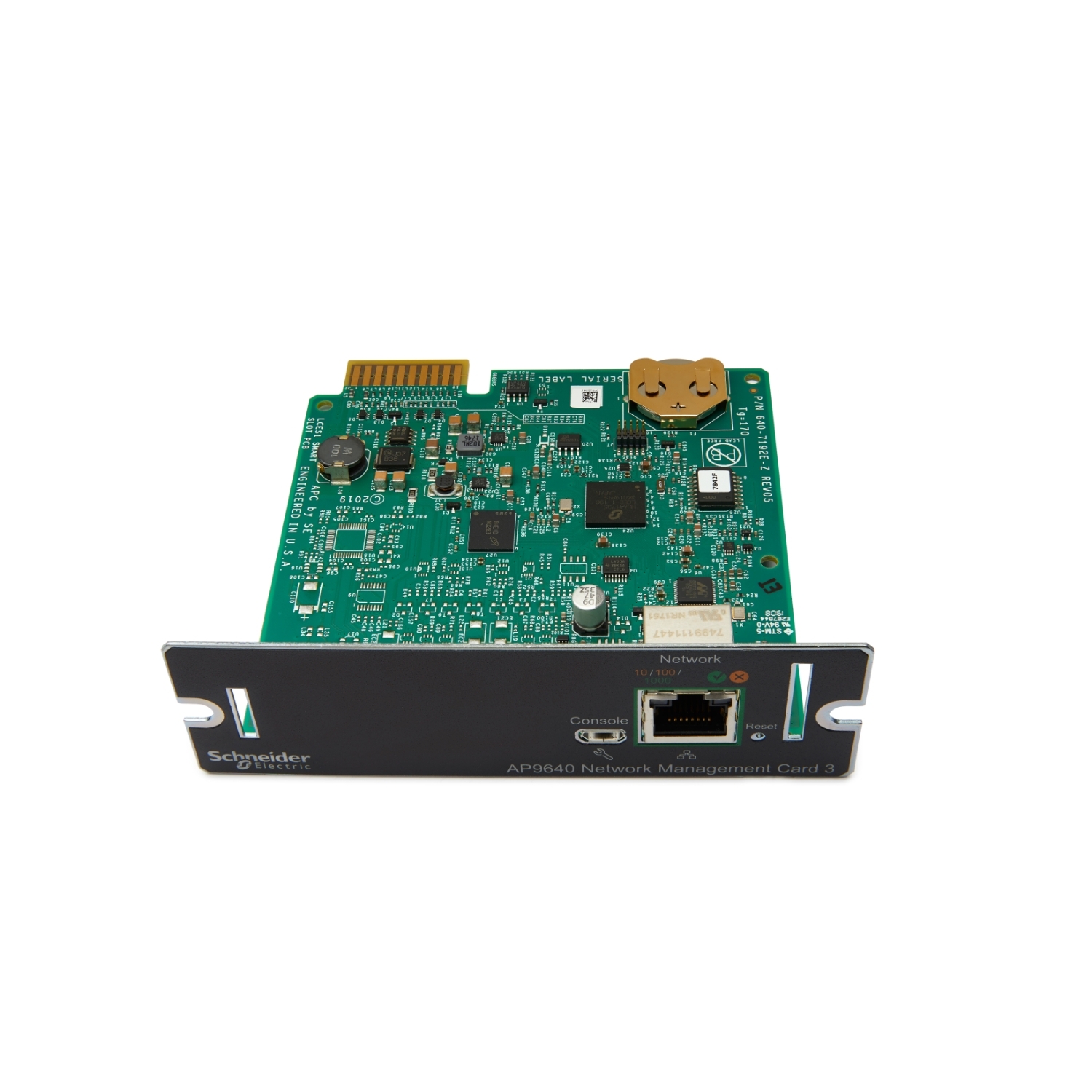

APC UPS Network Management Card 3 (AP9640)

This APC UPS Network Management Card enables remote monitoring and control of individual Single Phase and Three Phase APC UPS via secure network browsers or external command line interfaces. The NMC is connected to the UPS via a web browser, command line interface, or SNMP. The flash upgradeable firmware installs maintenance releases of firmware remotely using FTP. The Network Management Card provides multiple-user access, pre-loaded multiple language support, advanced security protection, and data and event log space. The NMC card with PowerChute Network Shutdown provides unattended, graceful shutdown of physical servers, virtual machines, and HCI clusters. The network card supports user-selectable password with strong password rules and a reset password mechanism.

Categories ,

Description

Overview
Lead time Usually in Stock
Main
Range of product Network Management Cards
Range compatibility Galaxy VM,
Galaxy VX,
Symmetra PX,
Easy UPS 3M Advanced,
Easy UPS 3-Phase Modular,
Galaxy PX,
Smart-UPS,
Smart-UPS Ultra,
Smart-UPS Online,
Smart-UPS Modular Ultra,
Smart-UPS Battery Systems,
Back-UPS SX3,
Refurbished Smart-UPS
Product or component type Device monitoring and management
Provided equipment Micro-USB cable,
Installation manual
Number of input phases 1, 3
Standards
Compliance standards EN 55024,
BS EN 55024,
EN 61000-4-2,
BS EN 61000-4-2,
EN 61000-4-3,
BS EN 61000-4-3,
EN 61000-4-4,
BS EN 61000-4-4,
EN 61000-4-5,
BS EN 61000-4-5,
EN 61000-4-6,
BS EN 61000-4-6,
EN 61000-4-8,
BS EN 61000-4-8,
EN 61000-4-11,
BS EN 61000-4-11,
EN 55035,
BS EN 55035,
EN 62040-2,
BS EN 62040-2,
EN 61326-2,
BS EN 61326-2,
ICES-003 class A,
VCCI class A,
EN 61000-6-3,
BS EN 61000-6-3,
EN 55032:class A,
BS EN 55032:class A
Physical
Product weight 0.08 kg
Width 12.1 cm
Height 3.8 cm
Depth 11.4 cm
Conformance
Product certifications FCC Class A,
AS/NZS,
AS/NZS 3548 (C-Tick) class A,
FCC part 15 class A,
GOST,
UK PSTI
Environmental
Storage Relative Humidity 0…95 %
Relative humidity 0…95 %
Ambient air temperature for storage -15…65 °C
Ambient air temperature for operation -5…45 °C
Storage altitude 0…15240 m
Operating altitude 0…10000 ft
Communications & Management
Communication network type 10/100/1000BASE-T
Authentication Radius, LDAP
Communication port protocol HTTP over secure sockets (HTTPS),
SSH,
FTP,
HTTP,
SNMP,
DHCP,
BOOTP (Bootstrap Protocol),
TCP/IP
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.1 cm
Package 1 Width 15.9 cm
Package 1 Length 23.5 cm
Package 1 Weight 0.34 kg
Contractual Warranty
Warranty 2 years repair or replace
