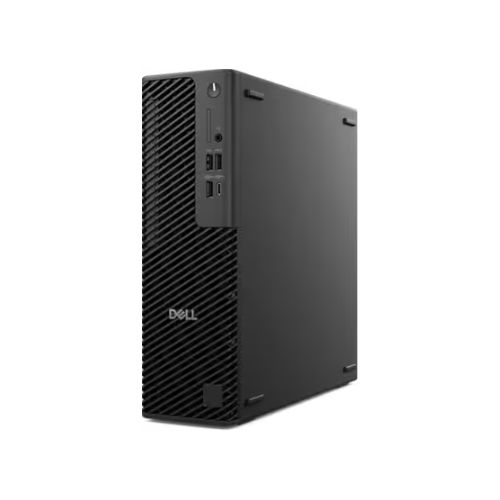

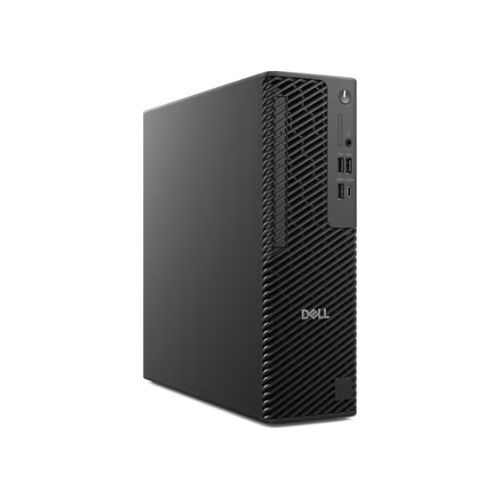

Dell Pro Max Slim Desktop

Description

Tech Specs & Customization
Processor
Intel® Core™ Ultra 5 235 (24 MB cache, 14 cores, 14 threads, 3.4 GHz to 5.0 GHz, 65W)
Intel® Core™ Ultra 5 245 (24 MB cache, 14 cores, 14 threads, 3.5 GHz to 5.1 GHz, 65W)
Intel® Core™ Ultra 5 245K (24 MB cache, 14 cores, 14 threads, 4.2 GHz to 5.2 GHz, 125W)
Intel® Core™ Ultra 7 265 (30 MB cache, 20 cores, 20 threads, 2.4 GHz to 5.3 GHz, 65W)
Intel® Core™ Ultra 7 265K (30 MB cache, 20 cores, 20 threads, 3.9 GHz to 5.5 GHz, 125W)
Intel® Core™ Ultra 9 285 (36 MB cache, 24 cores, 24 threads, 2.5 GHz to 5.6 GHz, 65W)
Intel® Core™ Ultra 9 285K (36 MB cache, 24 cores, 24 threads, 3.7 GHz to 5.7 GHz, 125W)

Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home
Windows 11 Pro
Windows 11 Pro, National Academic
Windows 11 Enterprise
Ubuntu Linux 24.04 LTS

Video Card
NVIDIA® RTX™ A400, 4 GB GDDR6
NVIDIA® RTX™ A1000, 8 GB GDDR6
NVIDIA® RTX™ 2000 Ada-next, 16 GB GDDR6
NVIDIA® RTX™ 4000 SFF Ada-next, 20 GB GDDR6

Memory*
8 GB: 1 x 8 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, single-channel
16 GB: 1 x 16 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, single-channel
16 GB: 2 x 8 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel
32 GB: 1 x 32 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, single-channel
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel
32 GB: 4 x 8 GB, DDR5, 4800 MT/s, UDIMM, Non-ECC, dual-channel
64 GB: 4 x 16 GB, DDR5, 4800 MT/s, UDIMM, Non-ECC, dual-channel
64 GB: 2 x 32 GB, DDR5, 5600 MT/s, UDIMM, Non-ECC, dual-channel
128 GB: 4 x 32 GB, DDR5, 4400 MT/s, UDIMM, Non-ECC, dual-channel

16 GB: 1 x 16 GB, DDR5, 5600 MT/s, UDIMM, ECC, single-channel
32 GB: 1 x 32 GB, DDR5, 5600 MT/s, UDIMM, ECC, single-channel
32 GB: 2 x 16 GB, DDR5, 5600 MT/s, UDIMM, ECC, dual-channel
64 GB: 4 x 16 GB, DDR5, 4800 MT/s, UDIMM, ECC, dual-channel
64 GB: 2 x 32 GB, DDR5, 5600 MT/s, UDIMM, ECC, dual-channel
128 GB: 4 x 32 GB, DDR5, 4400 MT/s, UDIMM, ECC, dual-channel

Storage
Solid-state drives
256 GB, M.2 2230, PCIe NVMe Gen4, SSD, Class 35
512 GB, M.2 2230, PCIe NVMe Gen4, SSD, Class 35
512 GB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40
1 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40
2 TB, M.2 2280, PCIe NVMe Gen4 x4, SSD, Self-Encrypting Opal 2.0, Class 40
4 TB, M.2 2280, PCIe NVMe Gen4 x4, SSDSelf-Encrypting Opal 2.0, Class 40

Hard drives
4 TB, 3.5-inch, 5400 RPM, SATA, HDD
512 GB, 3.5-inch, 7200 RPM, SATA, HDD
2 TB, 3.5-inch, 7200 RPM, SATA, HDD
4 TB, 3.5-inch, 7200 RPM, SAS, Enterprise HDD
8 TB, 3.5-inch, 7200 RPM, SAS, Enterprise HDD

Microsoft Office
Dell Optimizer/UUE
Dell Pair
Dell Trusted Device
Dell Command | Update
Dell Premier Color
Intel Unison
Support Assist
Support Assist OS Recovery (Excalibur)

Security Software
Dell Data Protection – Endpoint Security Suite (DDP|ESS) & Endpoint Security Suite Enterprise (DDP|ESS-E)
Dell Data Protection – SW Encryption (DDPE)
McAfee Business Protection
Dell Safe Guard and Response Crowd Strike, VMware Carbon Black, Secure works
Intel Guard Technologies and Secure Key –
Intel Device Protection with Platform Trust
Software Guard (SGX)
Memory Encryption
Data Guard (vPro only)
Boot Guard
BIOS Guard (Core CPUs only)
OS Guard (Core CPUs only)
Secure Key (i5 or greater only)
Microsoft 10 Device Guard & Credential Guard (Enterprise SKU)
Microsoft Windows Bitlocker
Intel Runtime BIOS Resilience (Copper Point) with attestation using Nifty Rock + Intel TXT
Support of Absolute Persistent Module BIOS agent v2

Support Services
3Y basic warranty with on-site service after remote diagnostics
4Y basic warranty extension
5Y basic warranty extension
1Y ProSupport with Next Business Day on-site service
2Y ProSupport with Next Business Day on-site service
3Y ProSupport with Next Business Day on-site service
4Y ProSupport with Next Business Day on-site service
5Y ProSupport with Next Business Day on-site service
1Y ProSupport Plus for Client with Next Business Day on-site service
2Y ProSupport Plus for Client with Next Business Day on-site service
3Y ProSupport Plus for Client with Next Business Day on-site service
4Y ProSupport Plus for Client with Next Business Day on-site service
5Y ProSupport Plus for Client with Next Business Day on-site service

Accidental Damage Protection
1-year Accidental Damage Service
2-year Accidental Damage Service
3-year Accidental Damage Service
4-year Accidental Damage Service
5-year Accidental Damage Service

Keyboard
Dell Collaboration Keyboard and Mouse – KM900

Ports
Front:

1 USB 3.2 Gen 2 (10Gbps) port
1 USB 3.2 Gen 2×2 Type-C® (20Gbps) port
1 USB 2.0 (480Mbps) with PowerShare port
1 USB 2.0 (480Mbps) ports
1 Global headset jack

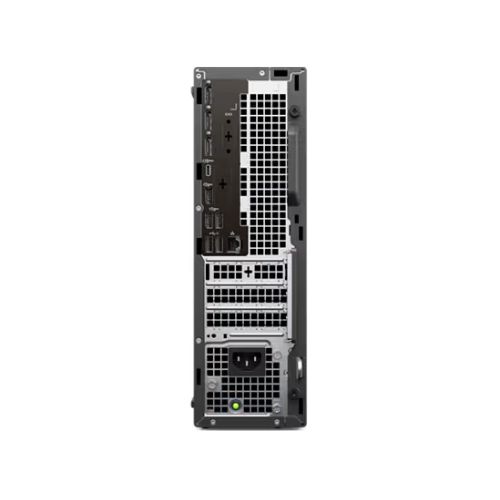

Rear:

1 RJ45 port 10/100/1000 Mbps
3 USB 3.2 Gen 1 (5Gbps) ports
1 USB 3.2 Gen 2 Type-C® (10Gbps) port
2 USB 2.0 (480Mbps) with PowerShare port
3 DisplayPort™ 1.4a (HBR3 support) ports
1 Optional port (VGA, HDMI 2.1 FRL, DisplayPort™ 2.1 UHBR20, USB 3.2 Gen 2 (10Gbps), USB 3.2 Gen 2 (10Gbps) Type-C® with DisplayPort™ Alt Mode port, Thunderbolt™ 4 port, Type-C® Data only Gen 2×1 (10Gbps) port, LC Fiber optic port)
1 Legacy serial port (optional)
1 RJ45 (5GbE) Ethernet port (optional)

Optical Drive
8x DVD-ROM, 9.5 mm
8x DVD+/-RW, 9.5 mm
6x Slimline Blu-Ray Writer

Slots
1 SD-card 4.0 slot (optional)
1 half-height Gen4 PCIe x16 slot
1 half-height Gen3 PCIe x4 slot
1 half-height Gen3 PCIe x1 slot
2 SATA 3.0 slots for 3.5-inch HDD and slim optical drive
1 M.2 2230 slot for Wi-Fi and Bluetooth combo card
1 M.2 2230/2280 slots for solid-state drive
1 M.2 2280+2230 (without bracket) slot for solid-state drive
1 M.2 2230 slot for solid-state drive

Dimensions & Weight
Height: 303.50 mm (11.95 in.)
Width: 95.00 mm (3.74 in.)
Depth: 293.00 mm (11.53 in.)

Starting weight: 3.97 kg (8.75 lb)

Wireless*
Intel® BE200 Wi-Fi 7, 2×2, WiFi 802.11be, MIMO, Bluetooth 5.4 wireless card
Qualcomm® FastConnect 7800, 2×2 MIMO, 5,760 Mbps, 2.4/5/6 GHz, Wi-Fi 7 (WiFi 802.11be) DBS, and Bluetooth 5.4 wireless card

Power
260 W internal power supply unit (80PLUS Bronze Certified)
360 W internal power supply unit (80PLUS Platinum Certified)
