Dell Pro Tower Desktop

Description

Tech Specs & Customization
Processor
Intel® 300 (6 MB cache, 2 cores, 4 threads, 3.90 GHz, 46 W)
Intel® Core™ i3 14100 (12 MB cache, 4 cores, 8 threads, 3.50 GHz to 4.70 GHz Turbo, 60 W)
Intel® Core™ i5 14500 vPro® (24 MB cache, 14 cores, 20 threads, 2.60 GHz to 5.00 GHz Turbo, 65 W)
Intel® Core™ i5 14600 vPro® (24 MB cache, 14 cores, 20 threads, 2.70 GHz to 5.20 GHz Turbo, 65 W)
Intel® Core™ i7 14700 vPro® (33 MB cache, 20 cores, 28 threads, 2.10 GHz to 5.40 GHz Turbo, 65 W)
Intel® Core™ Ultra 5 225 (20 MB cache, 10 cores, 10 threads, 3.30 GHz to 4.90 GHz Turbo, 65 W)
Intel® Core™ Ultra 5 235 (24 MB cache, 14 cores, 14 threads, 3.40 GHz to 5.00 GHz Turbo, 65 W)
Intel® Core™ Ultra 5 245 (24 MB cache, 14 cores, 14 threads, 3.50 GHz to 5.10 GHz Turbo, 65 W)
Intel® Core™ Ultra 7 265 (30 MB cache, 20 cores, 20 threads, 2.40 GHz to 5.30 GHz Turbo, 65 W)

Operating System
(Dell Technologies recommends Windows 11 Pro for business)
Windows 11 Home
Windows 11 Pro
Windows 11 Pro National Education
Ubuntu® Linux® 24.04 LTS

Video Card
Integrated Graphics:
Intel® UHD Graphics 710
Intel® UHD Graphics 730
Intel® UHD Graphics 770
Intel® Graphics

Discrete Graphics:
AMD Radeon™ RX 6300, 2 GB GDDR6

Memory*
For computers shipped with an Intel® Core™ 300/i3 14100/i5 14500 vPro® processor:
8 GB: 1 x 8 GB, DDR5, up to 4800 MT/s, UDIMM, single-channel
16 GB: 1 x 16 GB, DDR5, up to 4800 MT/s, UDIMM, single-channel
16 GB: 2 x 8 GB, DDR5, up to 4800 MT/s, UDIMM, dual-channel
32 GB: 1 x 32 GB, DDR5, up to 4800 MT/s, UDIMM, single-channel
32 GB: 2 x 16 GB, DDR5, up to 4800 MT/s, UDIMM, dual-channel
64 GB: 2 x 32 GB, DDR5, up to 4800 MT/s, UDIMM, dual-channel

For computers shipped with an Intel® Core™ i5 14600 vPro®/i7 14700 vPro® processor:
8 GB: 1 x 8 GB, DDR5, up to 5600 MT/s, UDIMM, single-channel
16 GB: 1 x 16 GB, DDR5, up to 5600 MT/s, UDIMM, single-channel
16 GB: 2 x 8 GB, DDR5, up to 5600 MT/s, UDIMM, dual-channel
32 GB: 1 x 32 GB, DDR5, up to 5600 MT/s, UDIMM, single-channel
32 GB: 2 x 16 GB, DDR5, up to 5600 MT/s, UDIMM, dual-channel
64 GB: 2 x 32 GB, DDR5, up to 5600 MT/s, UDIMM, dual-channel

For computers shipped with an Intel® Core™ Ultra 5 225/235/245 or Ultra 7 265 processor:
8 GB: 1 x 8 GB, DDR5, up to 5600 MT/s, UDIMM, single-channel
16 GB: 1 x 16 GB, DDR5, up to 5600 MT/s, UDIMM, single-channel
16 GB: 2 x 8 GB, DDR5, up to 5600 MT/s, UDIMM, dual-channel
32 GB: 1 x 32 GB, DDR5, up to 5600 MT/s, UDIMM, single-channel
32 GB: 2 x 16 GB, DDR5, up to 5600 MT/s, UDIMM, dual-channel
64 GB: 2 x 32 GB, DDR5, up to 5600 MT/s, UDIMM, dual-channel
8 GB: 1 x 8 GB, DDR5, up to 6400 MT/s, CUDIMM, single-channel
16 GB: 1 x 16 GB, DDR5, up to 6400 MT/s, CUDIMM, single-channel
16 GB: 2 x 8 GB, DDR5, up to 6400 MT/s, CUDIMM, dual-channel
32 GB: 1 x 32 GB, DDR5, up to 6400 MT/s, CUDIMM, single-channel
32 GB: 2 x 16 GB, DDR5, up to 6400 MT/s, CUDIMM, dual-channel
64 GB: 2 x 32 GB, DDR5, up to 6400 MT/s, CUDIMM, dual-channel

Storage
HDD:
2 TB, 7200 RPM, 3.5-inch, SATA, HDD

SSD:
For computers shipped with an Intel® Core™ 300/i3 14100/i5 14500 vPro®/i5 14600 vPro®/i7 14700 vPro® processor:
256 GB, M.2 2230, TLC PCIe Gen3 NVMe, SSD, Class 35
512 GB, M.2 2230, QLC PCIe Gen3 NVMe, SSD, Class 25
512 GB, M.2 2230, TLC PCIe Gen3 NVMe, SSD, Class 35
1 TB, M.2 2230, QLC PCIe Gen3 NVMe, SSD, Class 25
1 TB, M.2 2230, TLC PCIe Gen3 NVMe, SSD, Class 35

For computers shipped with an Intel® Core™ Ultra 5 225/235/245 or Ultra 7 265 processor:
256 GB, M.2 2230, TLC PCIe Gen4 NVMe, SSD, Class 35
512 GB, M.2 2230, QLC PCIe Gen4 NVMe, SSD, Class 25
512 GB, M.2 2230, TLC PCIe Gen4 NVMe, SSD, Class 35
1 TB, M.2 2230, QLC PCIe Gen4 NVMe, SSD, Class 25
1 TB, M.2 2230, TLC PCIe Gen4 NVMe, SSD, Class 35

Microsoft Office
Adobe Acrobat Pro
Adobe AI Assistant
Adobe Express Premium
Adobe Photoshop Elements 2023 & Premier Elements 2023 Bundle
CyberLink Media Suite Essentials
CyberLink® Director Suite
CyberLink® PhotoDirector®
CyberLink® PowerDirector®
Dell Command | Configure (DCC)
Dell Command | Endpoint Configure for Microsoft Intune
Dell Command | Integration Suite (DCIS)
Dell Command | Intel vPro (DCIV)
Dell Command | Monitor (DCM)
Dell Command | Powershell Provider (DCPP) 2.7
Dell Command | Update (DCU)
Dell Optimizer (UUE)
Foxit PDF Editor
Microsoft Office
Microsoft 365
SupportAssist

Security Software
BIOS Guard (Core CPUs only)
Boot Guard
Data Guard (vPro only)
Dell Data Protection – Endpoint Security Suite (DDP|ESS)
Dell Data Protection – Endpoint Security Suite Enterprise (DDP|ESS-E)
Dell Data Protection – SW Encryption (DDPE)
Dell SafeGuard and Response CrowdStrike, VMware Carbon Black, Secureworks
Dell Trusted Device
Intel Device Protection with Platform Trust
Intel Guard Technologies and Secure Key –
Intel Runtime BIOS Resilience (Copper Point) with attestation using Nifty Rock + Intel TXT
McAfee Business Protection
Memory Encryption
Microsoft 10 Device Guard & Credential Guard (Enterprise SKU)
Microsoft Windows Bitlocker
OS Guard (Core CPUs only)
Secure Key (i5 or greater only)
Software Guard (SGX)
Support of Absolute Persistent Module BIOS agent v2

Support Services
1 year Basic Warranty: Onsite Service/Parts Only/Channel: Extended Duration SKUS (add 3 months) & Partner Ops Support/Retail SKUS (Add 3 months), up to 5 years
ProSupport with Same Business day Service/ProSupport 4 Hour 7 x 24, ProSupport 7 x 11 (Japan Only), ProSupport 5 x 11 (Japan Only), up to 5 years
ProSupport Next Business Day Onsite Service, up to 5 years
Specialized Onsite Services Onsite Diagnosis Service, up to 5 years
ProSupport for Software, up to 5 years
ProSupport Flex for Client/ProSupport Flex for Client Subscriptions, up to 5 years
ProSupport Channel Extended SKU’s (Add 3 months), up to 5 years
ProSupport Plus Same Business Service/ProSupport Plus for PCs Subscriptions/ProSupport Plus 7 x 24 4 Hour, ProSupport Plus 7 x 11 (Japan Only), ProSupport Plus 5 x 11 (Japan Only), up to 5 years
ProSupport Plus for Client, up to 5 years

Accidental Damage Protection
Accidental Damage Service, up to 5 years
Accidental Damage with Theft Service, up to 5 years
Accidental Damage Protection, up to 5 years
Complete Care Service, up to 5 years
Keep Your Hard Drive, up to 5 years
Keep Your Component – US FED only, up to 5 years
TechDirect: Parts and Labor Reimbursement, up to 5 years

Ports

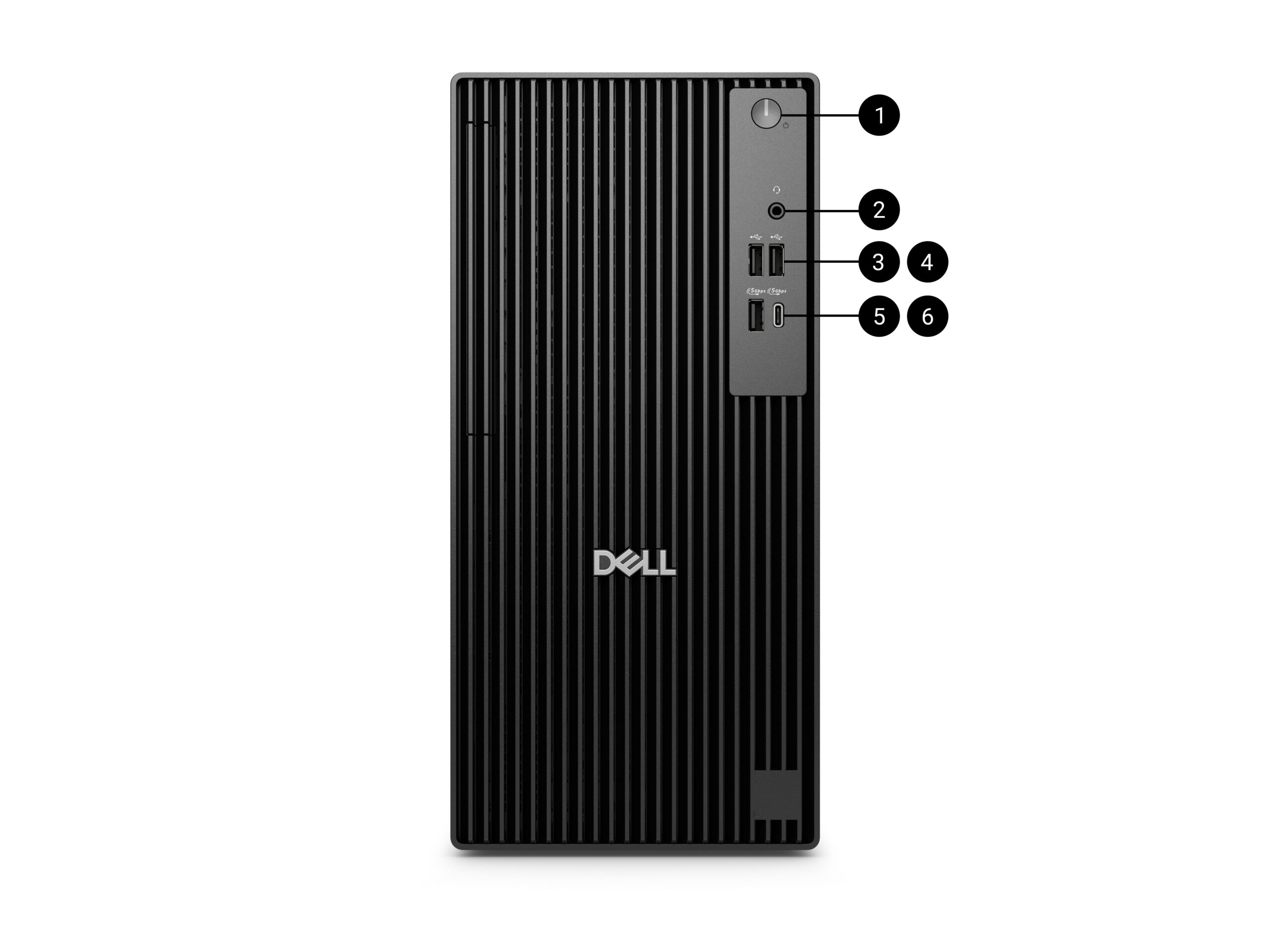

Front:
2 USB 2.0 (480 Mbps) ports
1 USB 3.2 Gen 1 (5 Gbps) Type-C® port
1 USB 3.2 Gen 1 (5 Gbps) port
1 global headset jack

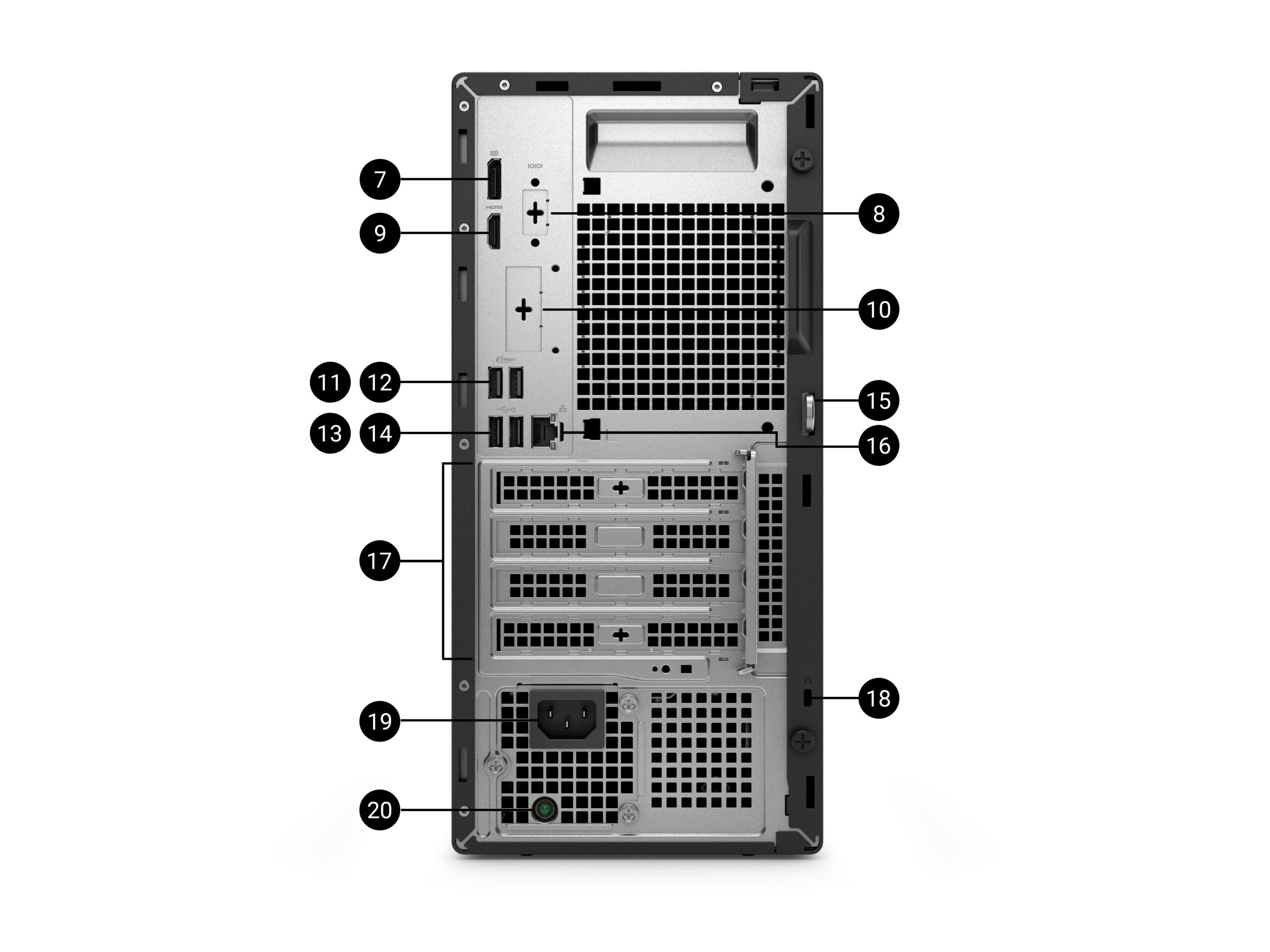

Rear:
For computers shipped with an Intel® Core™ 300/i3 14100/i5 14500 vPro®/i5 14600 vPro®/i7 14700 vPro® processor:
2 USB 2.0 (480 Mbps) with SmartPower On ports
2 USB 3.2 Gen 1 (5 Gbps) ports
1 RJ45 (1 Gbps) Ethernet port
1 HDMI 2.1 (TMDS) port
1 DisplayPort™ 1.4a (HBR2) port
1 legacy serial port (optional)

For computers shipped with an Intel® Core™ Ultra 5 225/235/245 or Ultra 7 265 processor:
2 USB 2.0 (480 Mbps) with SmartPower On ports
2 USB 3.2 Gen 1 (5 Gbps) ports
1 RJ45 (1 Gbps) Ethernet port
1 HDMI 2.1 (TMDS) port
1 DisplayPort™ 1.4a (HBR3) port
1 legacy serial port (optional)

Rear (expansion, these are mutually exclusive options):
For computers shipped with an Intel® Core™ 300/i3 14100/i5 14500 vPro®/i5 14600 vPro®/i7 14700 vPro® processor:
1 VGA port (optional)
1 HDMI 2.1 (TMDS) port (optional)
1 DisplayPort™ 1.4a (HBR3) port (optional)
2 USB 3.2 Gen 2 (10 Gbps) ports (optional)
1 USB 3.2 Gen 2 (10 Gbps) Type-C® with DisplayPort™ Alt Mode port (optional)

For computers shipped with an Intel® Core™ Ultra 5 225/235/245 or Ultra 7 265 processor:
1 VGA port (optional)
1 HDMI 2.1 (FRL) port (optional)
1 DisplayPort™ 2.1 (UHBR20) port (optional)
2 USB 3.2 Gen 2 (10 Gbps) ports (optional)
1 USB 3.2 Gen 2 (10 Gbps) Type-C® with DisplayPort™ Alt Mode port (optional)

Optical Drive
Dell Slimline 8x DVD +/- RW (optional)
Dell Slimline 8x DVD +/- ROM (optional)

Slots
1 SATA 3.0 HDD slot
1 SATA 3.0 ODD slot
2 full-height Gen3 PCIe x1 slots
1 full-height Gen3 PCIe x16 slot
1 M.2 2230/2280 SSD slot
1 M.2 2230 slot for WiFi and Bluetooth combo card
1 security-cable slot (Kensington lock)

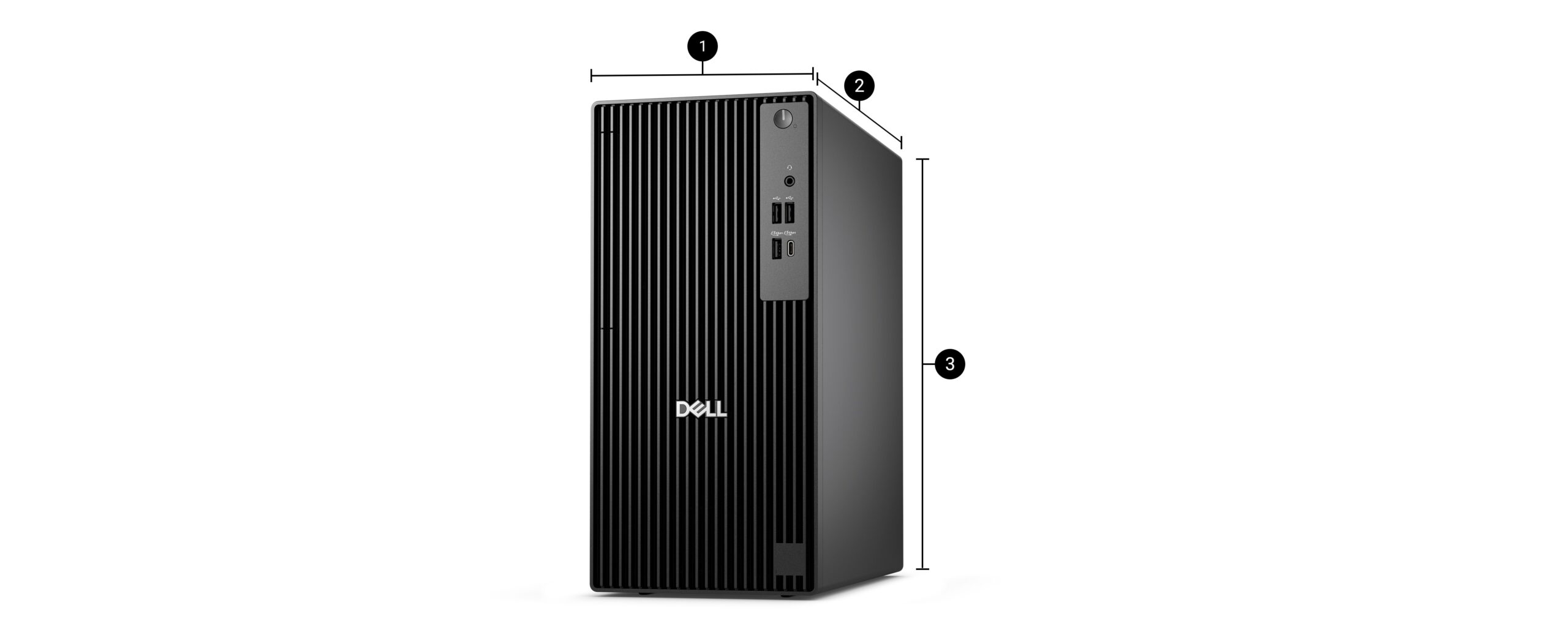

Dimensions & Weight
Height: 324.30 mm (12.77 in.)
Width: 154.00 mm (6.06 in.)
Depth: 293.00 mm (11.54 in.)
Weight (Minimum): 5.44 kg (12 lb)
Weight (Maximum): 6.78 kg (14.95 lb)

Wireless*
Intel® Wi-Fi 6E AX211, 2×2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card
Intel® Wi-Fi 7 BE200, 2×2, 802.11be, MU-MIMO, Bluetooth® 5.4 wireless card
MediaTek Wi-Fi 6 MT7920, 2×2, 802.11ax, MU-MIMO, Bluetooth® 5.4 wireless card

Power
180 W Bronze internal power supply unit
360 W Platinum internal power supply unit
